Joint sealings / Joint tapes

This product range provides our customers with joint sealing systems, which are used in construction joints and expansion joints in interior and exterior areas. UV resistance is of course an important component here.

PT Proofflex SK

Product information

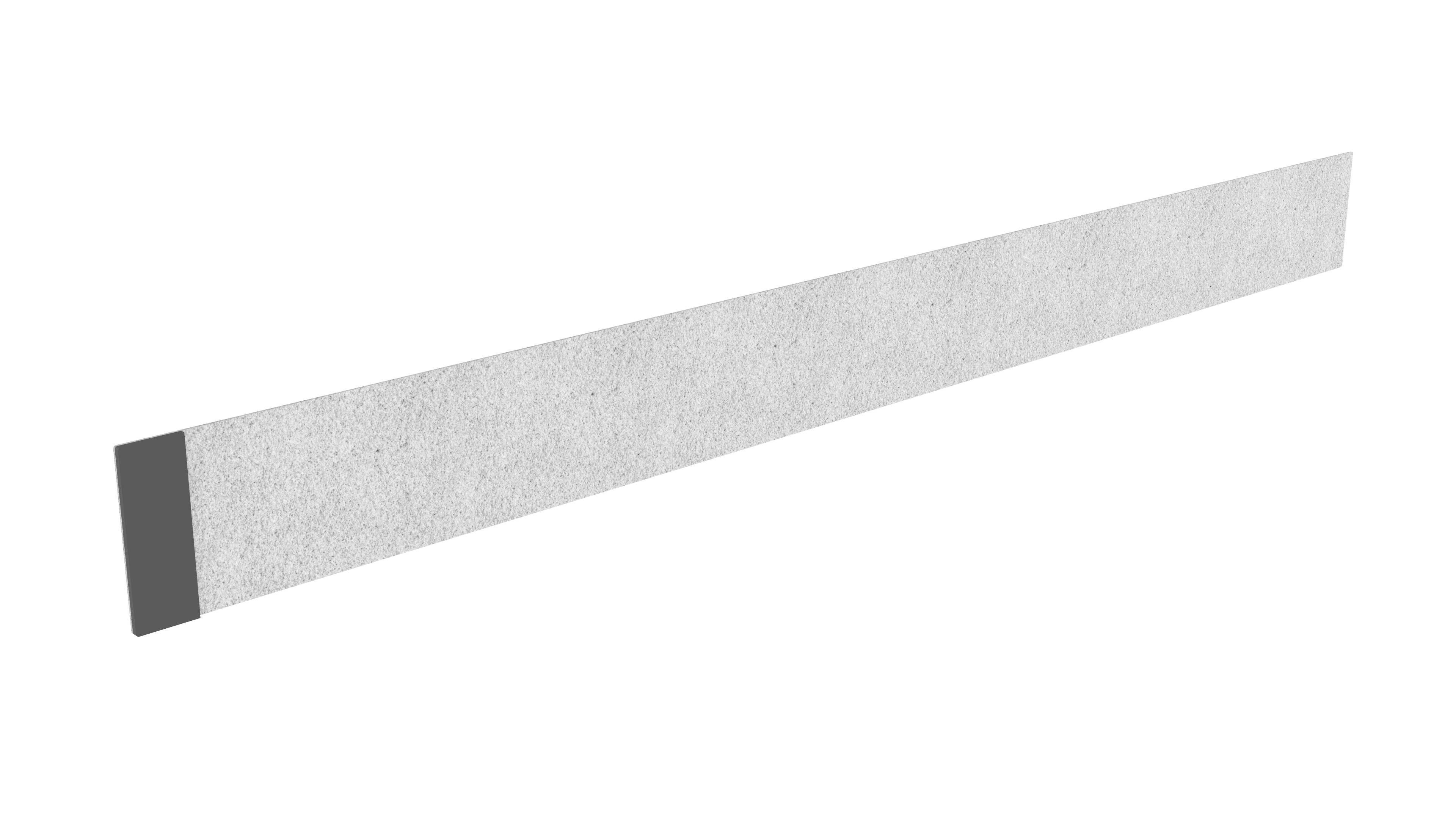

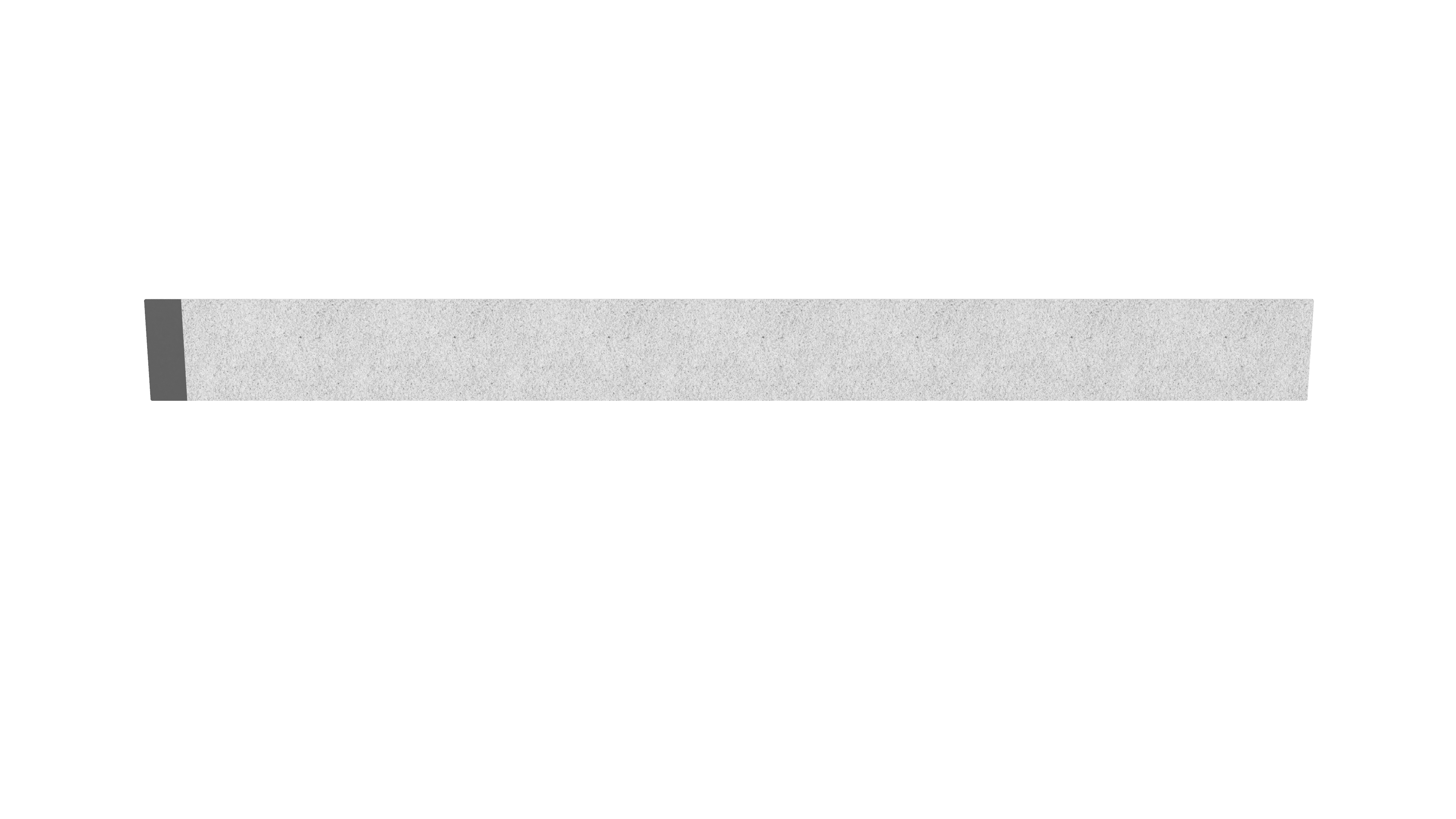

PT Proofflex SK is a joint sealing element made of galvanized metal. The total thickness is approx. 0.9 mm. PT Proofflex SK is coated with a special elastic coating on both sides. The special coating consists of a pressure-sensitive adhesive to create a permanently flexible adhesion to fresh concrete.

Delivery form
  • Height: 150 mm, Length: 2 m, Article-No. 04700150
  • Height: 167 mm, Length: 2 m, Article-No. 04700167
  • Wooden box: 50 x 2 m
Technical data sheets

PT Proofflex Premium active

Product information

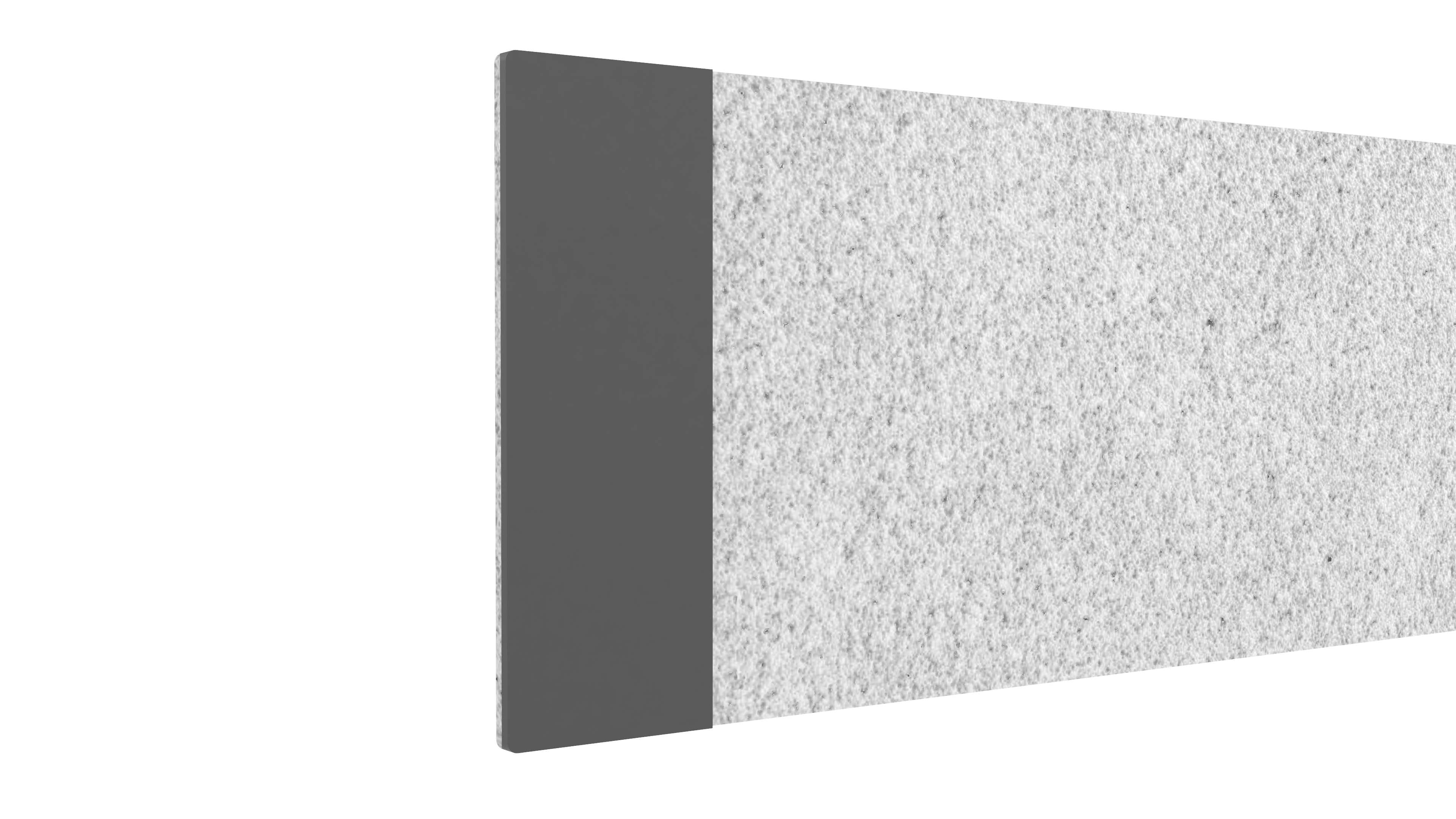

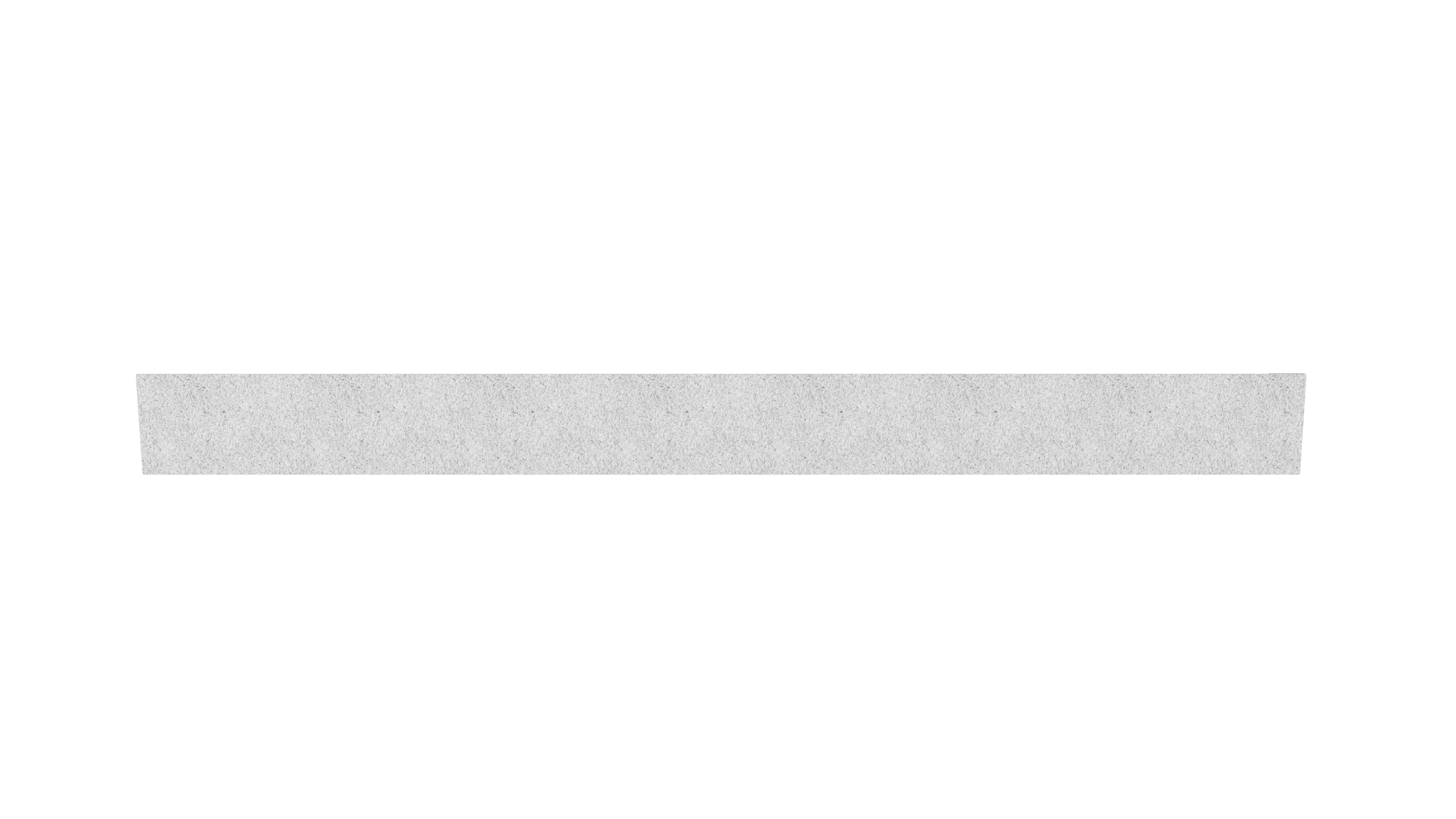

PT Proofflex Premium active  is a joint sealing element made of galvanized metal. The total thickness is approx. 1.1 mm. PT Proofflex Premium active has a very special elastic coating on both sides. The special coating consists of a pressure-sensitive adhesive which is coated with a special granulate to create a permanently flexible active adhesion to fresh concrete. The surface-enhancing coating results in a drastic increase in the path of the water and the effect of sintering the fresh concrete into the adhesive composite layer is achieved, too. Compared to other product systems a foil for protection of the coating is not required and has not to be removed before application.

Delivery form
  • Height: 150 mm, Length: 2 m, Article-No. 04600150
  • Height: 167 mm, Length: 2 m, Article-No. 04600167
  • Wooden box: 50 x 2 m
Technical data sheets

PT Joint Tape

Product information

PT Joint Tape is homogeneous high performance joint sealing tape based on special raw materials, which leads to a perfect bonding to epoxy based and other adhesives. The high performance tape can be welded with hot air. PT Joint Tape is UV-resistant.

Delivery form
  • Thickness: 1 mm, Width: 200 mm, 20 m roll, Article-No. 04100200
  • Thickness: 2 mm, Width: 200 mm, 20 m roll, Article-No. 04200200
  • Other dimensions on demand

PT PVC Joint Tape CJ I

Product information

PT PVC Joint Tape CJ I is a cavity-free construction joint tape based on PVC-P. The joint tape is manufactured in a variety of shapes depending on the requirements and the area of application. The PT PVC Joint Tape CJ I achieves a path extension of the water through its special formed profiles which leads to a permanently sealed construction joint. Furthermore, its elasticity is of great noticeability.

Delivery form

Thickness: 3 mm, Width: 140 mm, Article number 04801140
Thickness: 3 mm, Width: 200 mm, Article number 04801200
Thickness: 3 mm, Width: 240 mm, Article number 04801240
Thickness: 3 mm, Width: 300 mm, Article number 04801300

Technical data sheets

PT PVC Joint Tape EJ O

Product information

PT PVC Joint Tape EJ O is a cavity-free expansion joint tape based on PVC-P. The joint tape is manufactured in a variety of shapes depending on the requirements and the area of application. The PT PVC Joint Tape EJ O achieves a path extension of the water through its special formed profiles which leads to a permanently sealed construction joint. Furthermore, its elasticity is of great noticeability.

Delivery form

Thickness: 3 mm, Width: 200 mm, Article number 04804200
Thickness: 3 mm, Width: 240 mm, Article number 04804240
Thickness: 3 mm, Width: 300 mm, Article number 04804300

Technical data sheets

PT PVC Joint Tape EJ I

Product information

PT PVC Joint Tape EJ I is a cavity-free expansion joint tape based on PVC-P. The joint tape is manufactured in a variety of shapes depending on the requirements and the area of application. The PT PVC Joint Tape EJ I achieves a path extension of the water through its special formed profiles which leads to a permanently sealed construction joint. Furthermore, its elasticity is of great noticeability.

Delivery form

Thickness: 3 mm, Width: 140 mm, Article number 04803140
Thickness: 3 mm, Width: 200 mm, Article number 04803200
Thickness: 3 mm, Width: 240 mm, Article number 04803240
Thickness: 3 mm, Width: 300 mm, Article number 04803300

Technical data sheets

PT PVC Joint Tape Premium CJ I

Product information

PT PVC Joint Tape Premium CJ I is a cavity-free construction joint tape produced according to DIN 18541 and is based on PVC-P. The joint tape is manufactured in a variety of shapes depending on the requirements and the area of application. The PT PVC Joint Tape Premium CJ I achieves a path extension of the water through its special formed profiles which leads to a permanently sealed construction joint. Furthermore, its elasticity is of great noticeability.

Delivery form

Thickness: 3,5 mm, Width: 190 mm, Article number 04805190
Thickness: 4 mm, Width: 240 mm, Article number 04805240
Thickness: 4,5 mm, Width: 320 mm, Article number 04805320
Thickness: 5 mm, Width: 400 mm, Article number 04805400

Technical data sheets

PT PVC Joint Tape Premium CJ O

Product information

PT PVC Joint Tape Premium CJ O is a cavity-free construction joint tape produced according to DIN 18541 and is based on PVC-P. The joint tape is manufactured in a variety of shapes depending on the requirements and the area of application. The PT PVC Joint Tape Premium CJ O achieves a path extension of the water through its special formed profiles which leads to a permanently sealed construction joint. Furthermore, its elasticity is of great noticeability.

Delivery form

Thickness: 4 mm, Width: 250 mm, Height: 25 mm, Article number 04806252
Thickness: 4 mm, Width: 320 mm, Height: 25 mm, Article number 04806322
Thickness: 4 mm, Width: 500 mm, Height: 25 mm, Article number 04806502
Thickness: 4 mm, Width: 250 mm, Height: 30 mm, Article number 04806253
Thickness: 4 mm, Width: 320 mm, Height: 30 mm, Article number 04806323

Technical data sheets

PT PVC Joint Tape Premium EJ I

Product information

PT PVC Joint Tape Premium EJ I is an expansion joint tape produced according to DIN 18541 and is based on PVC-P. The joint tape is manufactured in a variety of shapes depending on the requirements and the area of application. The PT PVC Joint Tape Premium EJ I achieves a path extension of the water through its special formed profiles which leads to a permanently sealed construction joint. Furthermore, its elasticity is of great noticeability.

Delivery form

Thickness: 4 mm, Width: 190 mm, Article number 04807190
Thickness: 4 mm, Width: 240 mm, Article number 04807240
Thickness: 5 mm, Width: 320 mm, Article number 04807320
Thickness: 5 mm, Width: 400 mm, Article number 04807400
Thickness: 6 mm, Width: 500 mm, Article number 04807500

Technical data sheets

PT PVC Joint Tape Premium EJ O

Product information

PT PVC Joint Tape Premium EJ O is an expansion joint tape produced according to DIN 18541 and is based on PVC-P. The joint tape is manufactured in a variety of shapes depending on the requirements and the area of application. The PT PVC Joint Tape Premium EJ O achieves a path extension of the water through its special formed profiles which leads to a permanently sealed construction joint. Furthermore, its elasticity is of great noticeability.

Delivery form

Thickness: 4 mm, Width: 250 mm, Height: 25 mm, Article number 04808252
Thickness: 4 mm, Width: 320 mm, Height: 25 mm, Article number 04808322
Thickness: 4 mm, Width: 500 mm, Height: 25 mm, Article number 04808502
Thickness: 4 mm, Width: 250 mm, Height: 30 mm, Article number 04808253
Thickness: 4 mm, Width: 320 mm, Height: 30 mm, Article number 04808323

Technical data sheets
